Integrated-Set Bag
home < Business < Integrated-Set Bag
line

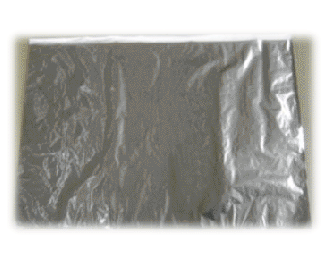

  • The introduction & structure of the All In One Bag to packaging sets
  • This bag has the merits both AL-Bag & PET-Bag for the
    prevention of passing-through humidity to LCD Module
    and Lami-Bag for the protection of sets.
    It is used in large domestic and foreign enterprises nowadays.

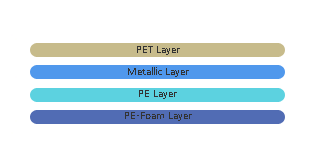

  • It is consist of 4 layers totally.
    It is integrated by PET & Metallic layers for the prevention of
    passing-through humidity and PE & PE-foam layers for the set
    protection.

    • The Characteristic of the All In One Bag for packaging sets


    Bag for Module Lami-Bag All In One Bag for packaging sets
    merits the effect for the prevention of passing-through humidity the effect for preventing
    scratch    		 It can be the prevention of passing-through
    humidity and scratch simultaneously
    demerits defect to scratch defect to the prevention of humidity It also can be just one packaging process
    If satisfying both kinds of It has effects the simplification of
    packaging process, the improvement
    packaging processes both bag of Module and Lami-Bag of working process , cost-down and
    offering high-quality image to buyers



    Test result for passing-through humidity( test institution : KEMTI )


    test item unit test result test method
    degree of passing-through humidity
    ( 38 ±2℃, 100%R.H )    		 g/m2*day 0.4 KS M 3088 : 2004 test equipment : PERMATRAN-W, Model 3161
    ( MOCON, USA )
